Intel H81

+  Model:  AK-H81M EL
+  Soket:  LGA1150
+  Chipset:  Intel H81
+  Bellek Desteği:  Çift Kanal DDR3

genel bakış

CPU Desteği: LGA1150 paketinde Intel® Core™ i7/i5/i3/Pentium®/ Celeron® işlemcileri destekler.
Intel 4. nesil çok çekirdekli işlemcileri destekleyin
Yonga Seti: Intel H81 Yonga Seti
Yerleşik Grafikler: Entegre Grafik İşlemci
Bellek: Çift Kanallı DDR3 1066/1333/1600MHz, ECC olmayan, tamponlanmamış belleği destekler
DIMM: 2 x Bellek Yuvası (Maks. her biri 8 GB'a kadar)
LAN: Yerleşik Realtek® RTL8105E 100 Mbps
Ses: Yerleşik Realtek® 662 6 kanallı HD Audio Codec
Ön Panel ses çıkışı, mikrofon girişi jakı
SATA: 4 x SATA bağlantı noktası, 1 x M.2 Yuva
Yerleşik Pin Başlıkları / Konnektörler:
1 x USB 2.0 pin başlığı, ek 2 USB 2.0 bağlantı noktasını destekler
1 x Ön Panel Ses pin başlığı
Yuvalar: 1 x PCI Express x16 yuvası, 1 x PCI Express x1 yuvası
BIOS: UEFI BIOS
Form Faktörü: Mikro-ATX (21cm X 21cm)
Montaj: 6 montaj deliği

Spesifikasyon

		INTEL H81
	CPU Support	Support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150package. Support Intel 4th generation multi-core processors
	Chipset	Intel H81 Chipset
	On-Board Graphics	Integrated Graphics Processor
	Memory	Dual Channel DDR3 1066/1333/1600MHz, Supports non-ECC, un-buffered memory
	DIMM	2 x Memory Slots (Max. up to 8GB each)
	LAN	Onboard Realtek® RTL8105E 100 Mbps
	Audio	Onboard Realtek® 662 6-channel HD Audio Codec Front Panel audio-out,mic-in jack
	SATA	4 x SATA port, 1 x M.2 Port

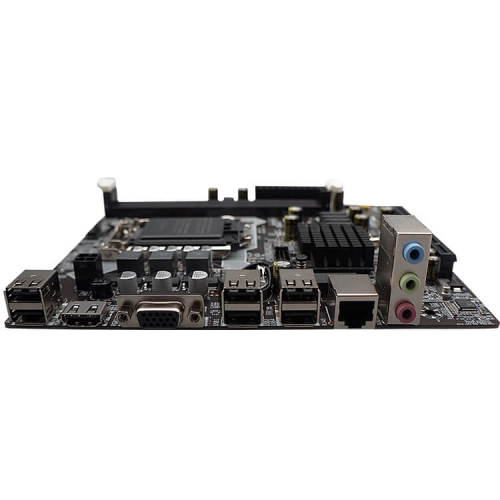

	Back Panel I/O Ports	1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack (Line in / Line Ourt / Mic in)
	ON-Board Pinheaders /Connectors	1 x USB 2.0 pinheader supports additional 2 USB 2.0 ports 1 x Front Panel Audio pinheader
	Slots	1 x PCI Express x16 slot, 1 x PCI Express x1 slot
	BIOS	UEFI BIOS
	Form Factor	Micro-ATX (21cm X 21cm)
	Mounting	6 mounting holes
	Accessories	1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD
	Remark	All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
